Description

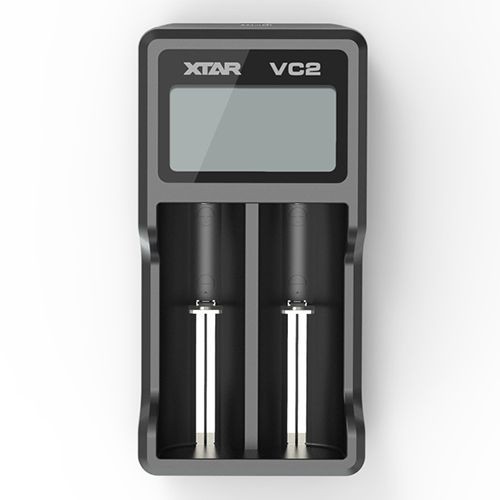

XTAR VC2 Battery Charger: Two Bays, Micro-USB, 18650 and 21700
The XTAR VC2 is a compact two-bay USB charger with an LCD that shows each cell’s voltage, charging current and the capacity going in. XTAR powers it through micro-USB and charges at 0.5A a bay, using its TC-CC-CV charging method.
0.5A is a gentle rate: slower than a fast charger, but kind to your batteries. UK stockists list it for 18350, 18500, 18650, 20700, 21700 and 26650 Li-ion cells, which makes it a sensible match for most single and dual-battery mods.
🔌 XTAR VC2 at a Glance
✔ Two charging bays
✔ Micro-USB powered
✔ 0.5A per bay (XTAR)
✔ Shows voltage, current and capacity
✔ 18650, 20700 and 21700 cells
✔ Overcharge protection
XTAR VC2 Specifications
XTAR’s figures, with the cell list and protections from UK stockist Vape Superstore.
| Spec | XTAR VC2 |
|---|---|
| Bays | Two |
| Input | Micro-USB (XTAR) |
| Charging current | 0.5A per bay, TC-CC-CV (XTAR) |
| Display | LCD: voltage, charging current and capacity |
| Cells | 18350, 18500, 18650, 20700, 21700 and 26650 Li-ion |
| Protection | Overcharge protection; fireproof ABS casing |
Which Batteries Does the VC2 Charge?
UK stockists list 18350, 18500, 18650, 20700, 21700 and 26650 Li-ion cells (IMR, INR, ICR and NCR). XTAR describes the VC2 as a Li-ion charger.
These cells from our range all charge in the VC2: the Vapcell K25 18650, Sinowatt 25SP 18650 and Sinowatt 30SP 18650, and the Vapcell P42A 21700.
Will not fit: Ni-MH or any other non-Li-ion battery – XTAR describes the VC2 as a Li-ion charger.
How to Use the XTAR VC2
- Plug the VC2 into a USB supply with its micro-USB lead.
- Check each battery’s wrap first: never charge a cell with a torn wrap or a dent.
- Slide the negative contact back and fit the battery, positive end to the positive terminal.
- Watch the display for voltage, current and the capacity going in.
- Take the batteries out once they’re full, and don’t leave them charging unattended.
How Long Does Charging Take?
At 0.5A, a flat 2500mAh 18650 takes roughly five hours, and a 4200mAh 21700 roughly eight and a half, plus a little extra for the final top-off. It’s slow, but gentle on the cells, so it’s ideal for overnight charging in a safe spot.
XTAR VC2 Troubleshooting
| Problem | Likely cause and fix |
|---|---|
| The display shows no battery | Slide the contact back further and reseat the cell, and check it’s the right way round. |
| Charging takes hours | That’s the 0.5A rate. It’s gentle on the battery, just slower than a fast charger. |
| A Ni-MH battery won’t charge | XTAR describes the VC2 as a Li-ion charger. |
| A battery gets hot | Stop charging and let it cool. Replace any cell that runs hot or has a damaged wrap. |
XTAR VC4 vs XTAR VC2 vs Efest LUSH BOX
| XTAR VC4 | XTAR VC2 | Efest LUSH BOX | |
|---|---|---|---|
| Bays | 4 | 2 | 2 |
| Charging current | 0.1–1A, automatic | 0.5A per bay | 1 x 2.1A or 2 x 1.0A |
| Cells | 10440–32650; no 21700 listed | 18350 to 26650, including 21700 | 18650 only |
| Power bank | Not listed | Not listed | Yes |
For a dual-18650 mod with a spare pair, the VC4. For 21700s, the VC2. For charging on the move, the LUSH BOX.
Charging Safety
Charge on a hard surface away from anything that could burn, never leave batteries charging unattended, and never carry loose cells in a pocket with keys or coins. Don’t charge or use a battery with a torn wrap or a dent. For dual-battery mods, keep cells as a pair: charge them together and replace them together.
Buy the XTAR VC2 Near You
Need an XTAR VC2 charger today? Our Totton vape shop, Hythe vape shop and Holbury vape shop stock vape batteries, chargers and spares, and the team can check which resistance suits your device and e-liquid. We can check your batteries fit before you buy. Stock varies by store, so give us a call before you travel. Ordering online instead? See our delivery options.
You May Also Like
Frequently Asked Questions
Does the XTAR VC2 charge 21700 batteries?
Yes. UK stockists list 21700 alongside 18650, 20700 and 26650.
How fast does the XTAR VC2 charge?
0.5A per bay, according to XTAR.
How is the VC2 powered?
Through a micro-USB port, from any USB supply.
Can the VC2 charge two batteries at once?
Yes. It has two bays.
Is 0.5A charging bad for batteries?
No. It’s gentle; it just takes longer than a faster charger.
